AIR-VAC M-30 AIR CLEANER

3,000 ft3 /min. | A Healthy Solution for Clean Air

The Air-Vac M-30/M-30C Series is a 3,000/3,500 CFM (Cubic Foot per Minute) air filtration unit. It’s self-contained for use individually or in groups in your shop or building without exhausting or duct work required. Each M-30 series is hand-built in USA with industrial-grade components housed in a heavy-duty 16 gauge steel cabinet and finished with chemical resistant powder coat paint.

The Air-Vac M-30/M-30C reduces the make-up air requirements up to 80% without any heat or A/C loss. Energy cost savings alone make your Air-Vac air cleaning system an attractive investment for small operations or large multi-unit installations.

*5 year warranty on parts excludes filters

Air Vac Unit Model M-30 Photo 1

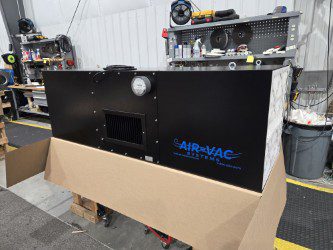

m30 airvac side
m30 air cleaner filters

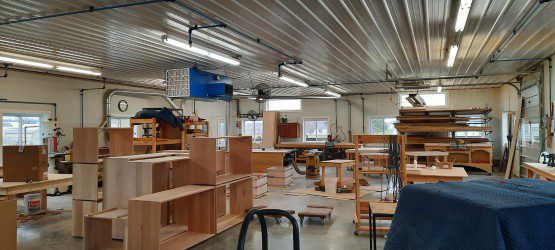

m30 airvac installed

How It Works

First, dirty air is pulled through filter intakes at each end of the M-30 series consisting of 4 inch thick pre-filters to catch the large particles.

The second stage filtration process is industrial grade 22 inch deep, 95% efficient bag filters which traps submicron particles that get through the pre-filter. The clean air is then exhausted back into the building through the center of the M-30.

Air Vac Unit Model M-30 Blueprint
M-30 SPECS

Dimensions: 24″×24″×72″

Weight:  175lbs

Power Consumption:  110v with 10ft power cord

M-30C SPECS

Dimensions: 26″×24″×72″

Weight:  270lbs

Power Consumption:  208-230VAC/460VAC with pre-wired junction box on unit

Rated to Filter

Welding Smoke

Diesel Smoke and Fumes

Grinding Dust

Oil Mist

Bondo Dust

Dust

Light Paint Overspray

Plastic Dust

Pollen

Printing Powder

Tobacco Smoke

Woodworking Dust

Other Smoke & Dust Problems

Options

Carbon Filter

Filter Change Gauge

Hepa Filter

Silencer: Reduces Sound by 12 Decibels

Uv Filter

Washable Foam Pre-filter

Wrap Around Pre-filter
